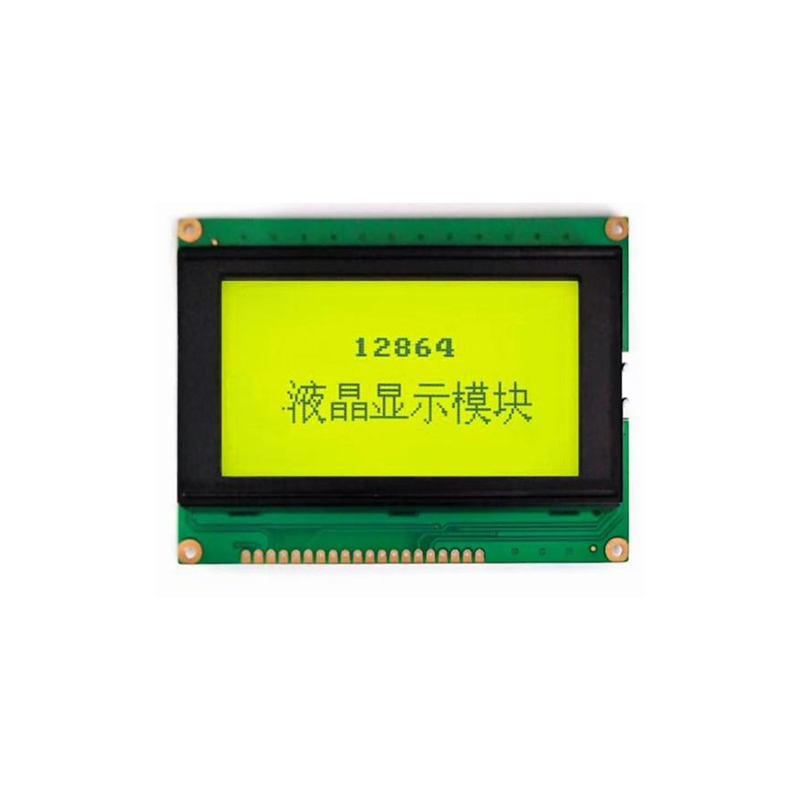

This product is a 12864 LCD dot matrix display capable of showing graphics at a resolution of 128 columns × 64 rows of pixels. The display uses an STN yellow green mode LED backlit LCD, presenting black characters on a yellow green background with high contrast and a wide viewing angle. The module integrates a dedicated driver chip, adopts COB (Chip on Board) manufacturing process, and connects to a host MCU via an 8 bit parallel LCD interface for displaying various images and text. An internal compensation circuit ensures good display performance even over a wide temperature range.
This product is a 12864 LCD that can display graphics at 128 columns × 64 rows of pixels. The display uses an STN yellow green mode LED backlit LCD, showing black characters on a yellow green background with high contrast and a wide viewing angle. The module integrates a dedicated driver chip, uses COB assembly, and connects to a host MCU through an 8 bit parallel interface to display various images and text. An internal compensation circuit enables reliable performance over a wide temperature range. This type of graphic dot matrix LCM is also available in other resolutions, such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can choose different combinations of LCD backlight and LCD panel according to their product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM12864PR-02 |
| Display content | 128x64 dot matrix display |
| Background | Yellow-green |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD?controller??AIP31108 |
| Module type | COB?LCD?Module |
| Connection | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED?backlit |
| Backlight color | Yellow-green |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
