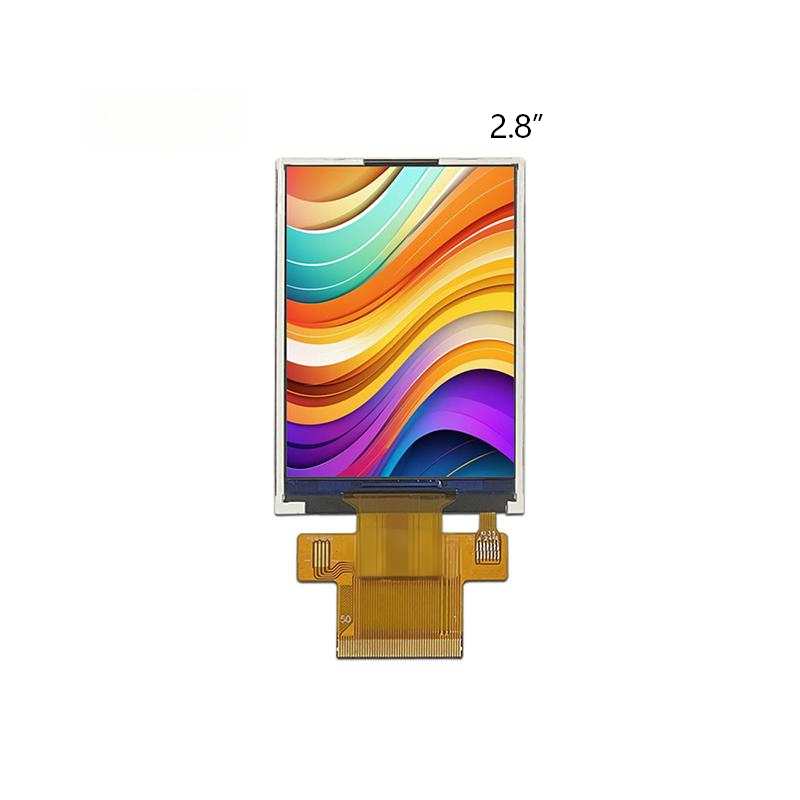

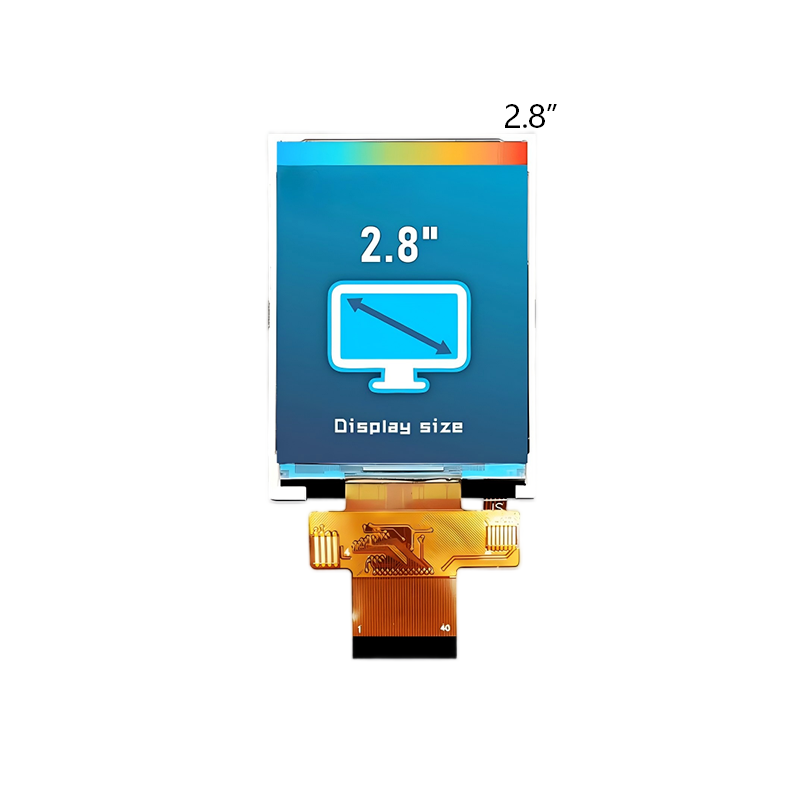

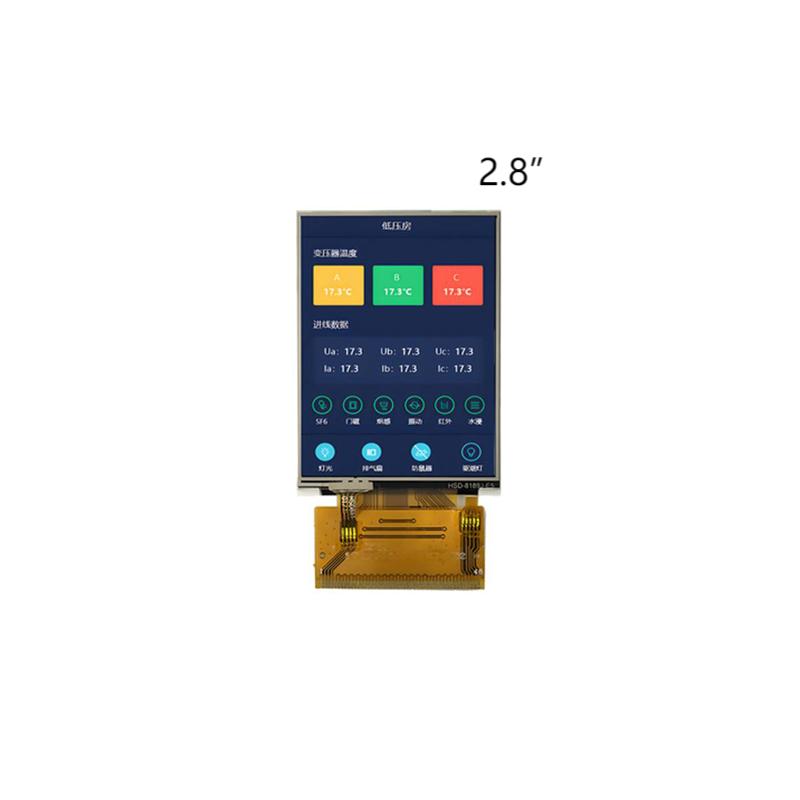

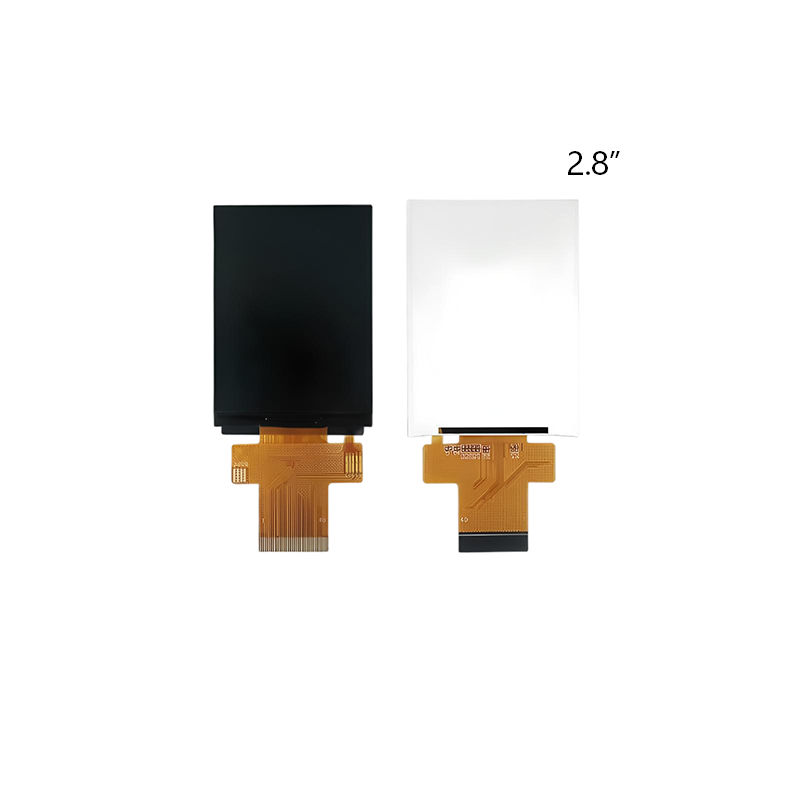

The 2.8-inch TFT features an IPS full-viewing-angle panel with 240×320 resolution, delivering true colors and clear images from any viewing angle. It is powered by the ST7789V driver IC with a standard interface and mature driver support, allowing engineers to quickly begin development. With a brightness of 350 cd/m2 and an operating temperature range of -30°C to 85°C, it meets the requirements for both indoor and outdoor instrumentation. Its compact design makes it suitable for applications such as industrial instruments, handheld devices, and smart control panels.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Precise Adaptability
Full size coverage from 0.96" to 15.6", with resolution options ranging from 80×160 to 1920×1200. We offer over 200 standard models to choose from.
? Customization Services Available
We provide the following customized services:
1.Backlight brightness.
2.Cover glass thickness, shape, and material.
3.3A surface treatment (AF/AR/AG).
4.OCA full lamination.
5.Integrated structural housing.
6.CTP customization.
? Trusted by Cross-Border Customers
Serving customers in 20+ countries including China, Germany, the USA, Poland, and Japan, with over 5,000 custom TFT display solutions delivered.
? Strict Environmental Compliance
All products are RoHS and REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT028LSAND-01 |
| Resolution | 240*320 |
| Interface | MCU/SPI |
| Driver chip | ST7789V |
| Connection | FPC |
| Display type | 262K color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 350cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -30-85℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
