This product is a 12864 LCD dot matrix display capable of rendering graphics with 128 columns and 64 rows of pixels. The display utilizes FSTN mode, featuring blue-black characters on a gray background, high contrast, and a wide viewing angle. The module integrates a driver chip and adopts COG production technology, resulting in a lightweight, slim design with low power consumption. It connects to the main control MCU via an SPI interface and is used to display various images and text.
This product is a 12864 LCD dot matrix display that can display graphics with a resolution of 128 columns by 64 rows of pixels. The display operates in FSTN mode, presenting blue-black text on a gray background with high contrast and a wide viewing angle. The module includes an embedded driver chip and is manufactured using COG technology, making it thin, lightweight, and energy-efficient. It connects to the main control MCU through an SPI interface, enabling the display of diverse images and text. Such graphic dot matrix displays are available in resolutions including 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, and 320x240, among others. Customers can choose different combinations of LCD backlight and LCD panel types based on their product requirements.
| Manufacturer | Eastern?Display |

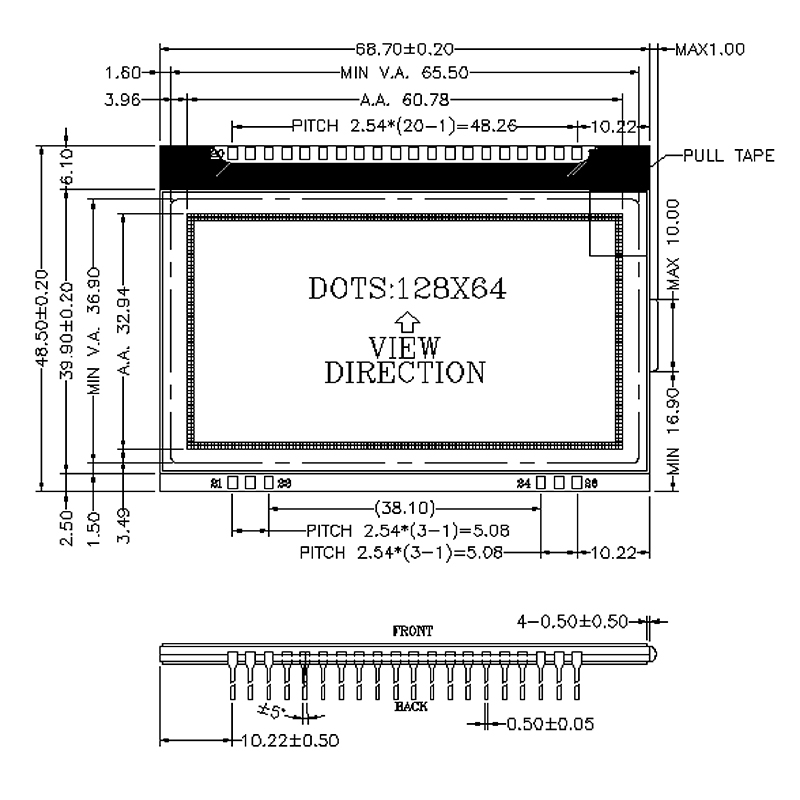

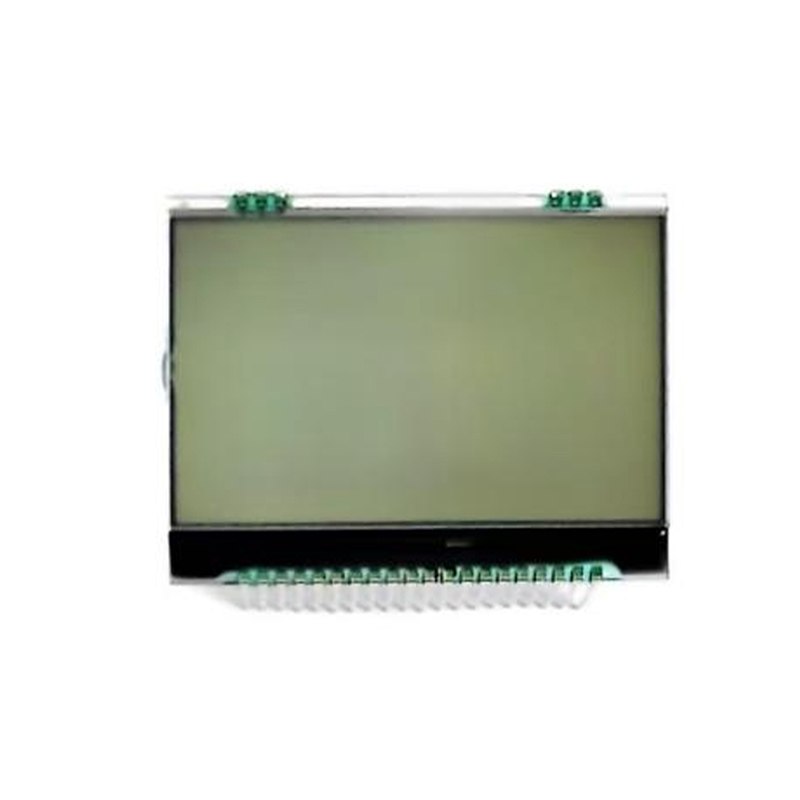

| Product model | EDM12864-137 |
| Display content | 128x64 dot matrix display |
| Background | Gray |
| Interface | SPI interface |
| Driver chip model | LCD?controller???ST7565R |
| Module type | COG?LCD?Module |
| Connection | PIN |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | No LED?backlit |
| Backlight color | - |
| Operating temperature | -20~70℃ |
| Storage temperature | -30-80℃ |
