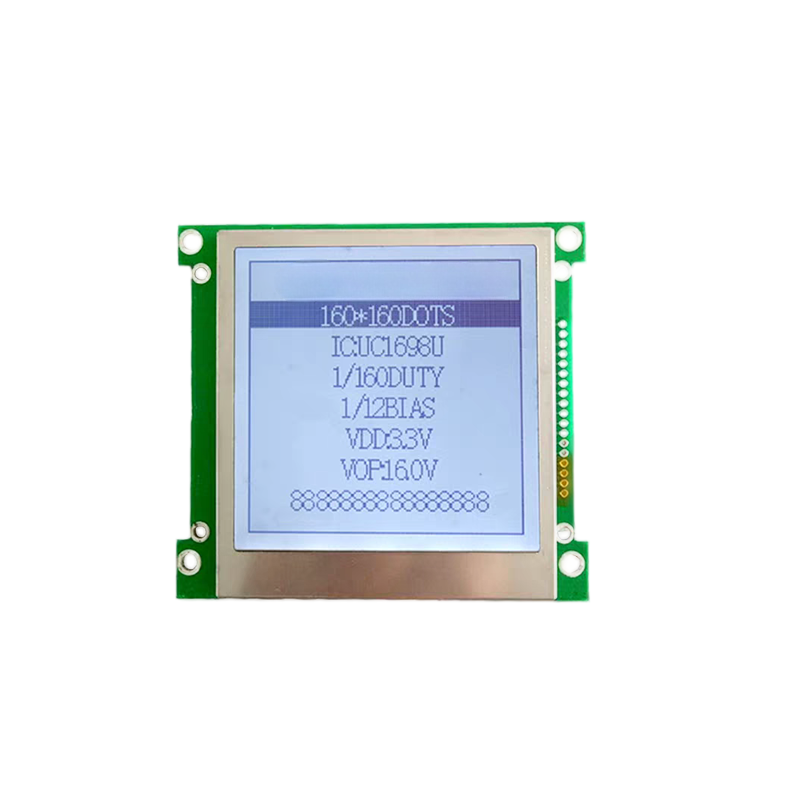

The viewing angle of STN LCDs is far superior to that of conventional TN/HTN screens, enabling them to meet the display requirements of complex images. Their duty drive typically supports 16 or more drive paths, up to a maximum of 240 paths, providing stable display with no crosstalk.

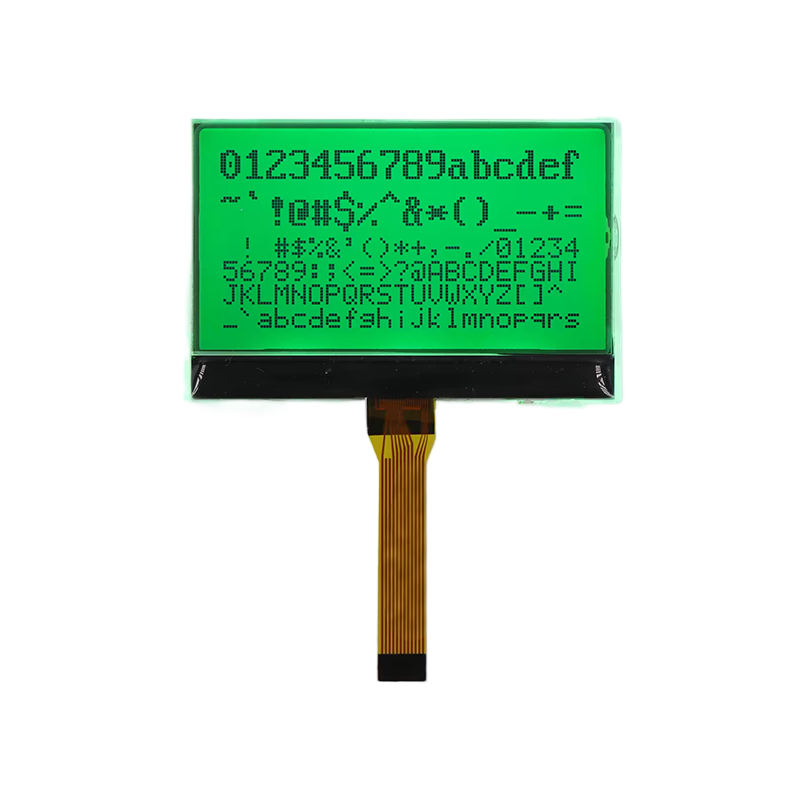

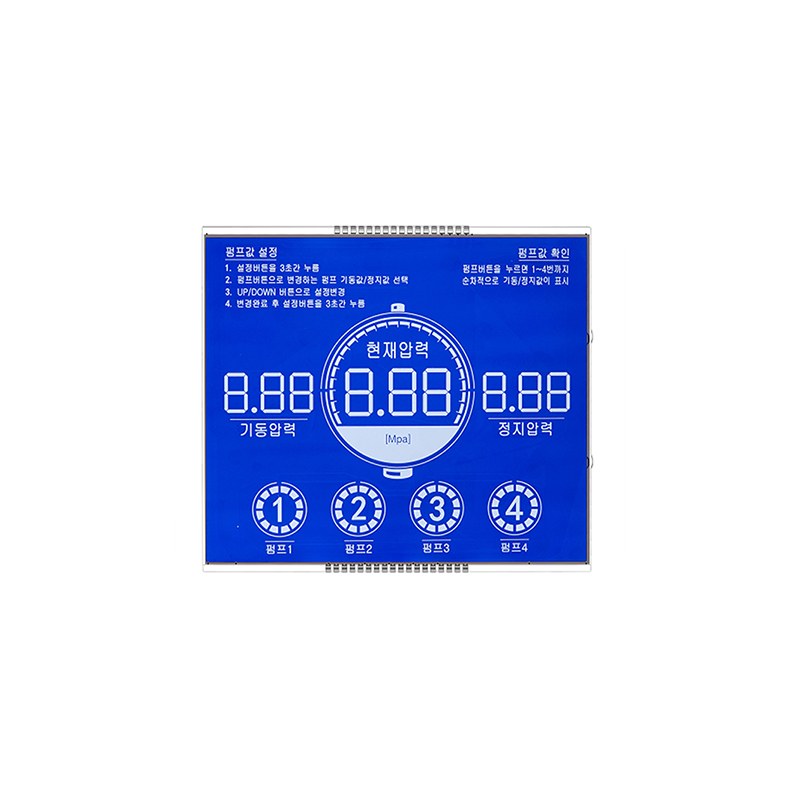

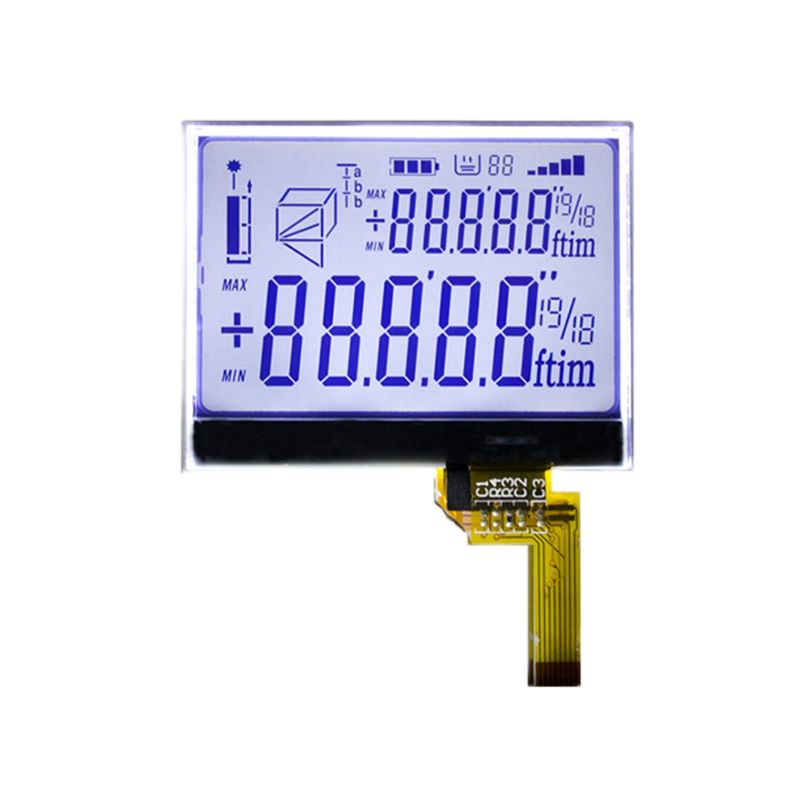

STN LCDs offer the advantage of an ultra-wide viewing angle, suitable for simultaneous viewing by multiple people. They are widely used in high-precision flow meters, precision measuring tools, smart interconnected metering devices, kitchen appliance control terminals, automotive instruments, and other fields, making them the industry’s preferred mainstream segment code LCDs. STN segment code LCDs feature high contrast ratio and excellent viewing angle performance, making them highly favored by customers in Europe, America, and overseas. For complex graphics and non-standard dot matrix display scenarios, STN segment code solutions are most commonly chosen, providing stable drive with no crosstalk. The products support dot matrix display within 240 drive paths, with three standard display modes available: black characters on a green background, black characters on a gray background, and white characters on a blue background. Eastern Display offers custom product models ranging from EDC001 to EDC26090, totaling over ten thousand models. All products in the series comply with RoHS and REACH environmental requirements.
| Manufacturer | Eastern Display |
| Display mode | STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Multiplex | ≤1/240 duty |
| Viewing angle range | 100-150° |
| Connection | PINS/FPC |
| Driver chip model | / |
| Operating temperature | -35℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | High-Duty Drive/Dot Matrix/Wide Viewing Angle |
