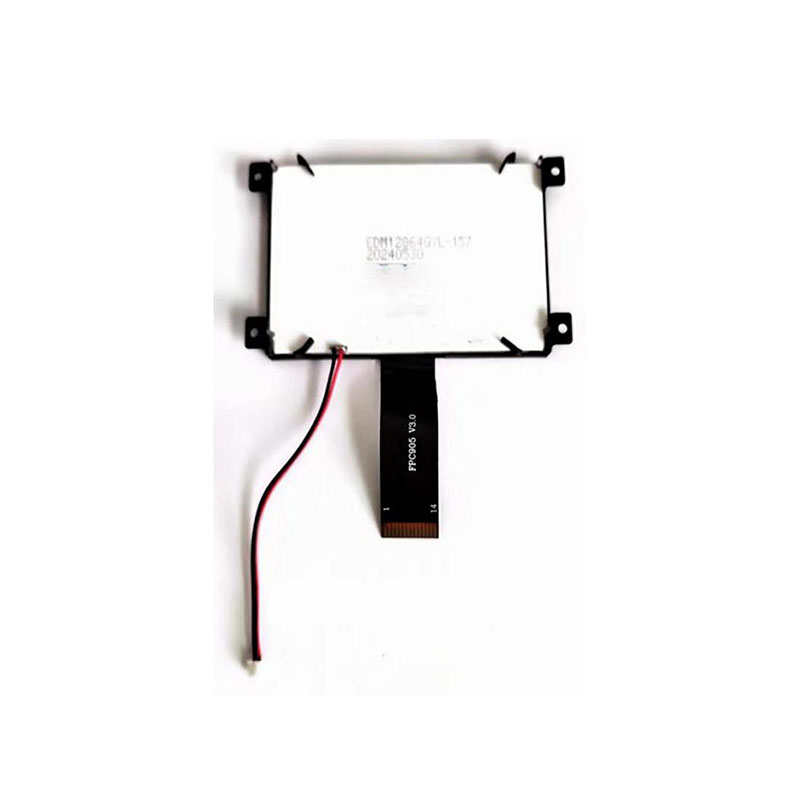

This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing.
This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing. Such graphic dot matrix displays are available in resolutions including 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, 320×240, etc. Customers can choose different types of LCD backlight and LCD panel combinations according to their product requirements.
| Manufacturer | Eastern?Display |
| Product model | EDM12864-157 |
| Display content | 128x64 dot matrix display |
| Background | Yellow-green |
| Interface | SPI interface |
| Driver chip model | LCD?controller?ST7565R |
| Module type | COG?LCD?Module |
| Connection | FPC |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED?backlit |
| Backlight color | Yellow-green |
| Operating temperature | -30~80℃ |
| Storage temperature | -40~85℃ |
