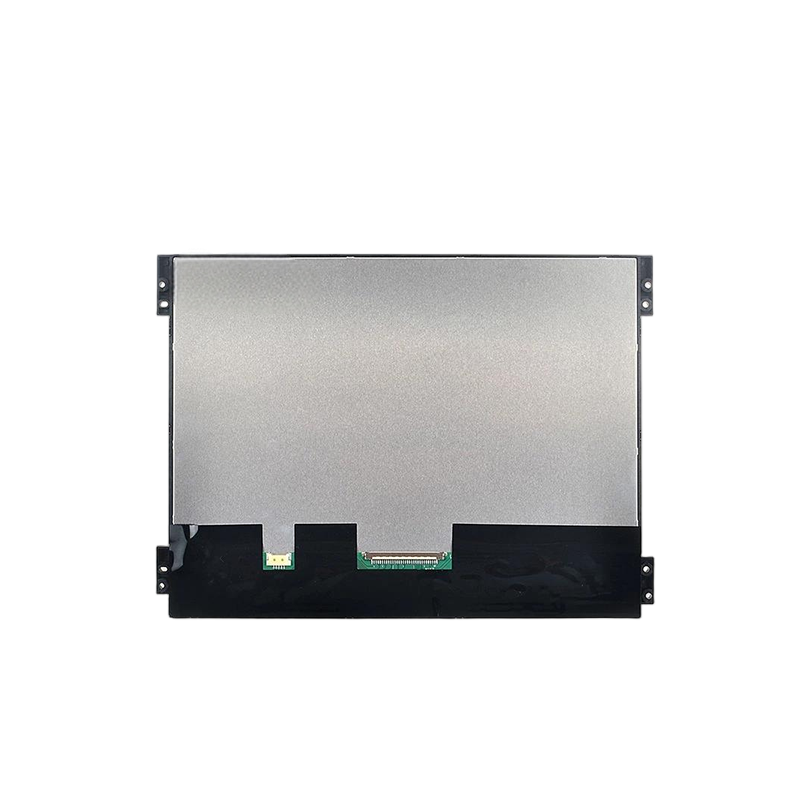

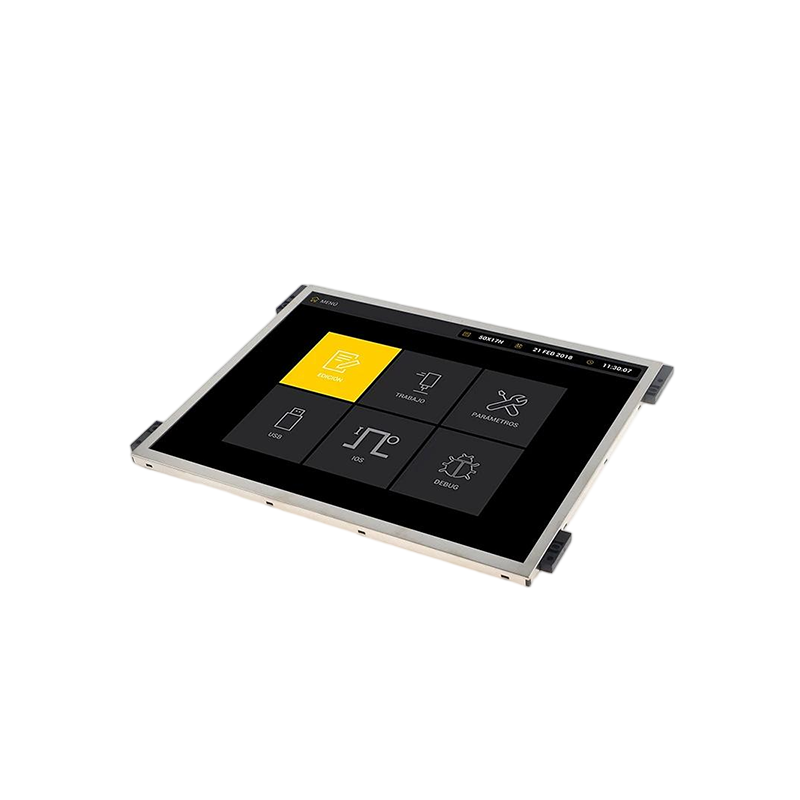

10.4 inch TFT display with IPS full viewing angle panel, 1024×768 resolution, 1000 cd/m2 brightness, clearly visible under sunlight. Supports ultra-wide temperature operation from -30°C to +80°C, 3.3V power supply with LVDS industrial interface, strong anti-interference capability, compliant with ROHS/REACH standards. Suitable for applications such as construction machinery display instruments, marine industrial control instruments, outdoor charging human-machine interface, etc.
EASTERN DISPLAY — Global Display Solution Expert
? Precise Adaptability
Provides full size coverage from 0.96" to 15.6", with resolutions ranging from 80×160 to 1920×1200. Our company offers over 200 standard products for selection.
? Customization Services Available
We can provide the following customization services for customers:
1. Backlight brightness
2. Cover glass thickness, shape, and material
3. AF/AR/AG surface treatment processes
4. OCA full lamination
5. Integrated structural housing
6. Customizable CTP
? Trusted Choice for Multinational Customers
Serving customers in more than 20 countries including China, Germany, the United States, Poland, and Japan, providing over 5,000 custom TFT display solutions.
? Strict Environmental Standards
All products are ROHS/REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT104LSIND-03 |
| Resolution | 1024*768 |
| Interface | 6/8 BIT LVDS |
| Driver chip | / |
| Connection | FPC |
| Display type | 16.7M Color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| LCM?brightness | 1000cd/m2 |
| Operating temperature | -30℃~+80℃ |
| Storage temperature | -30℃~+80℃ |
| Lifetime | 50000H |
